Upgrading to NVMe is not a simple hardware swap; it’s an architectural paradigm shift that breaks legacy storage bottlenecks, but only if you stop focusing on outdated metrics like IOPS.
- The NVMe protocol’s massive parallelism (65k queues vs. SATA’s single queue) is the true source of its low latency, not just the PCIe interface.
- Real-world user experience is dictated by tail latency (P99), not average IOPS, making latency the only metric that truly matters for transactional databases.
Recommendation: Shift your performance tuning from maximizing IOPS to minimizing latency and eliminating new bottlenecks like write amplification and software RAID overhead.
For years, database administrators have been fighting a losing battle against slow query responses. The culprit was always the same: slow, spinning-disk storage. The arrival of SATA SSDs was a breath of fresh air, but it was merely a patch on a fundamentally broken architecture. We were putting a slightly faster engine in a car still stuck on a single-lane road. The real problem wasn’t just the speed of the medium; it was the protocol designed in an era of mechanical latency.
The common wisdom is to simply “upgrade to NVMe” to solve all performance woes. While the raw speed is undeniable, this view is dangerously simplistic. It ignores the profound architectural shift that NVMe represents. Simply swapping a SATA SSD for an NVMe drive without understanding its underlying principles is like handing a fighter jet to a biplane pilot. The potential is there, but without a new way of thinking, you’re more likely to crash and burn than to break the sound barrier. The true advantage lies not in the flash chips themselves, but in the protocol’s ability to handle massive, concurrent I/O.
This article dismantles the myth that NVMe is just a faster SSD. We’ll explore why the NVMe protocol is a complete departure from the legacy, single-queue thinking of SATA. We will move beyond the marketing-hyped IOPS figures to focus on the one metric that defines user experience: latency. We’ll provide a practical blueprint for migrating massive databases, confront the new bottlenecks that NVMe performance exposes, and redefine how you should think about data protection and storage tiering in this new, high-performance world.
To navigate this deep dive into modern storage architecture, this article is structured to guide you from foundational principles to advanced strategic implementation. The following summary outlines the key areas we will cover.
Summary: Why NVMe Flash Arrays Reduce Database Latency by 50%?
- Why NVMe Protocol Is Superior to SATA for SSDs?
- How to Migrate 50TB Databases to NVMe With Zero Data Loss?
- Local NVMe vs NVMe over Fabrics: Which Fits Shared Storage?
- The Write-Intensive Workload That Kills NVMe Drives Early
- RAID for NVMe: Balancing Protection Without Killing Speed
- Why Snapshots Are Not a Replacement for Off-Site Backups?
- Hot vs Cold Storage: Which Tier Matches Your Retrieval Needs?
- IOPS vs Latency: Which Metric Matters More for User Experience?
Why NVMe Protocol Is Superior to SATA for SSDs?
The performance gap between NVMe and SATA isn’t just an incremental improvement; it’s a fundamental architectural leap. While both use flash memory, SATA is shackled by a protocol designed for spinning disks. It operates on a single command queue, capable of handling only 32 commands at a time. This is the equivalent of a single-lane road, creating a massive I/O bottleneck long before the flash media itself is saturated. This legacy design forces modern multi-core CPUs to wait in line, wasting precious cycles.
NVMe, in contrast, was designed from the ground up for solid-state storage and parallel processing. It leverages the high-speed PCIe bus to communicate directly with the CPU, bypassing layers of legacy abstraction. Its most significant advantage is its queueing architecture. According to recent server performance benchmarks, NVMe supports a staggering 65,535 parallel queues, each capable of holding 65,535 commands. This massive parallelism allows it to service I/O requests from multiple CPU cores simultaneously, without contention. The result is a dramatic reduction in software overhead and a staggering improvement in latency-sensitive database workloads.
This is not a theoretical benefit. The Oracle Linux Engineering Team highlights this in their technical analysis, stating:
NVMe achieves latency as low as ~20usec compared to ~60-100usec with SATA/AHCI
– Oracle Linux Engineering Team, Overview of NVMe Architecture
For a database administrator, this translates directly to faster query times. While average latency improves, the most critical impact is on tail latency—the worst-case response times that directly impact user experience. Performance analysis reveals that NVMe delivers 10x lower tail latency than SATA for database workloads, with P99 latencies (the 99th percentile) holding steady under load while SATA performance collapses. This predictability is the true hallmark of a modern storage architecture.
How to Migrate 50TB Databases to NVMe With Zero Data Loss?
Migrating a multi-terabyte, business-critical database is a high-stakes operation where downtime is measured in lost revenue and customer trust. The move to a new NVMe platform, while promising immense performance gains, introduces significant risk. A “big bang” migration is out of the question. The only viable approach is a carefully orchestrated, phased migration that guarantees zero data loss and near-zero perceived downtime for users. This requires more than just backup and restore; it demands a live, dual-write strategy.
Case Study: 25TB MySQL Zero-Downtime Migration
A senior AWS Database Administrator demonstrated a battle-tested blueprint for migrating a 25TB production MySQL database with zero perceived downtime. The system handled 2.8 million daily transactions across 3,400 tables. The strategy involved a blue-green deployment using database-native replication. For weeks, data was dual-written to both the old system and the new NVMe-based system (Stage 1: Shadow). Automated tools continuously compared row counts and checksums across thousands of tables to validate data consistency (Stage 2: Validation). The final cutover (Stage 3) involved a brief 5-minute window in read-only mode to switch application reads to the new system, which then became authoritative. The old system was kept in a dual-write state for a verification period (Stage 4) before being decommissioned (Stage 5: Cleanup), ensuring a safe rollback path at all times.
This real-world example underscores that a successful migration is a project of meticulous planning and validation, not a simple weekend task. The key is to de-risk the process by running the old and new systems in parallel, using live production traffic to prove the new system’s stability and data integrity before making the final switch. This “shadowing” phase is non-negotiable for any mission-critical database.
Your 5-Step Zero-Downtime Migration Checklist
- Benchmark & Baseline: Document the performance of the old system under peak load. Identify all application points of contact and establish clear success metrics for the new NVMe array.
- Replicate & Shadow: Set up database-native replication from the old system (source) to the new NVMe system (target). Implement a dual-write mechanism so all new data is written to both systems simultaneously.
- Validate & Verify: Continuously monitor replication lag. Run automated scripts to compare data consistency between the source and target (e.g., row counts, checksums). The systems must be 100% in sync before proceeding.
- Cutover & Promote: Schedule a maintenance window. Briefly place the application in read-only mode. Point all application read/write traffic to the new NVMe system, making it the authoritative source. Monitor performance and error logs intensely.
- Monitor & Decommission: Keep the dual-write mechanism active for a confidence period (e.g., 24-48 hours) to allow for a fast rollback if needed. Once the new system is proven stable, decommission the old infrastructure.
Local NVMe vs NVMe over Fabrics: Which Fits Shared Storage?
For single-node databases demanding the absolute lowest latency, nothing beats local, direct-attached NVMe. With latencies dipping into the 20-70 microsecond range, this architecture is ideal for write-intensive components like transaction logs. However, local storage creates data silos, complicating high availability (HA) and shared access in clustered database environments. This is where NVMe over Fabrics (NVMe-oF) enters the picture, extending the NVMe protocol’s benefits across a network fabric.
NVMe-oF allows servers to access a shared pool of NVMe storage as if it were local, retaining much of the low-latency advantage while providing the benefits of centralized, scalable storage. The choice of transport protocol for the “fabric” is critical, as it directly impacts performance, cost, and complexity. As a technical comparison from the NVM Express organization shows, each protocol offers a different trade-off.
| Protocol | Latency Range | CPU Overhead | Network Requirements | Implementation Complexity |
|---|---|---|---|---|
| NVMe/TCP | 300-500 µs (typical cluster), <200 µs (HCI same rack) | Medium (kernel-path processing) | Standard Ethernet, no special requirements | Low (commodity infrastructure) |
| NVMe/RoCE | 80-150 µs | Low (RDMA bypass) | Lossless network with DCB, RDMA-capable NICs | High (requires specialized networking) |
| NVMe/FC | ~100 µs | Low-Medium | Fibre Channel fabric (16-32 Gbps) | Medium (existing FC infrastructure advantage) |
| Local NVMe | 20-70 µs (random 4K read) | Minimal (direct PCIe) | N/A (local PCIe lanes) | Lowest (no network layer) |

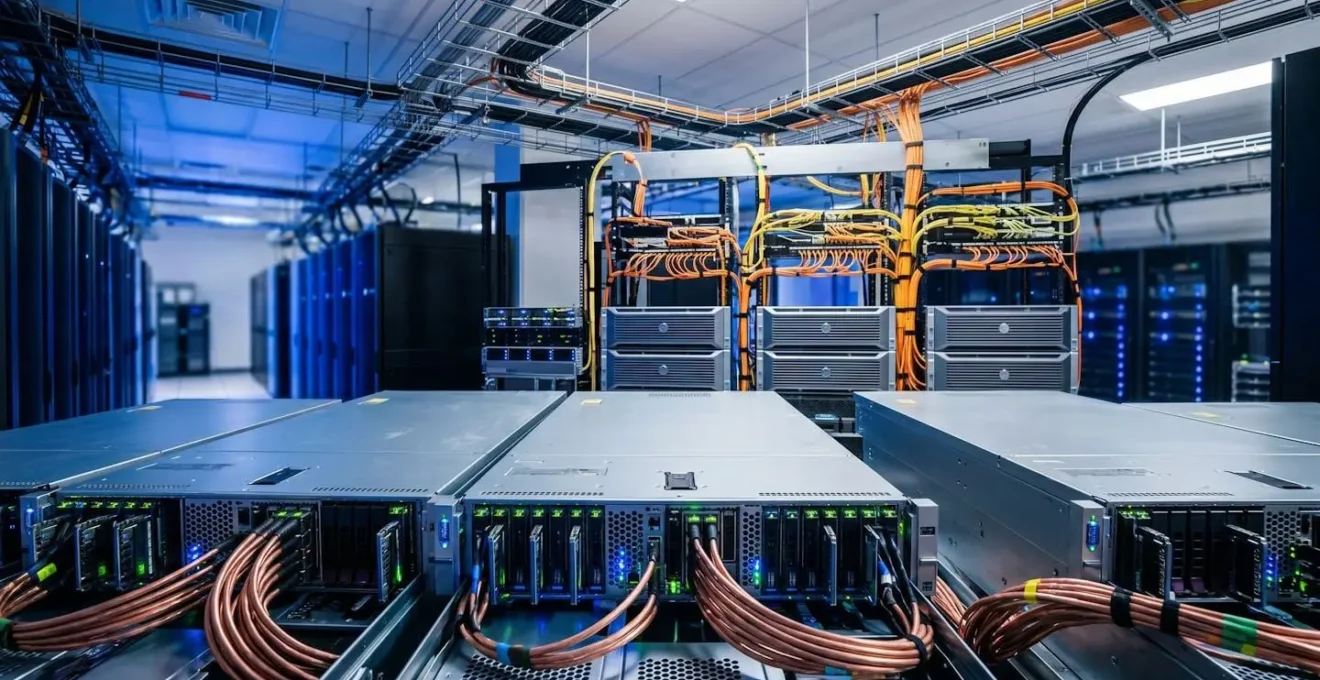

The optimal architecture for many high-performance databases is a hybrid approach. This design uses ultra-fast local NVMe drives for latency-critical transaction logs while storing the larger data files on a shared NVMe-oF array. This balances the need for extreme performance with the operational benefits of shared storage.
As the visual demonstrates, this tiered strategy physically separates the I/O patterns. The constant, small-block writes of the transaction log stay local to the compute node, while the larger, more random reads and writes to the data files are handled efficiently by the networked array. This prevents I/O contention and ensures each component gets the performance profile it needs.
The Write-Intensive Workload That Kills NVMe Drives Early
While NVMe drives offer incredible performance, their flash cells have a finite number of write cycles. This “endurance” is measured in Terabytes Written (TBW). In the legacy world of spinning disks, this was a non-issue. In the NVMe era, treating your drive’s endurance as a finite endurance budget is critical. The silent killer of this budget is a phenomenon known as write amplification (WA), where the actual amount of data written to the flash media is much larger than the amount of data the host system intended to write.
For databases, several common operations are notorious for causing massive write amplification, prematurely aging expensive NVMe drives. These are not obscure edge cases; they are frequent patterns in poorly optimized environments:
- Inefficient index rebuilds: Full table scans during an index rebuild can generate 3-5x the data size in writes, especially with concurrent write operations.
- Uncontrolled temporary tablespace usage: A single bad query can create massive temporary datasets that spill from memory to disk, generating gigabytes of unnecessary writes.
- High-frequency small I/O: “Chatty” applications that issue thousands of sub-4KB writes per second are highly inefficient, as the drive’s internal block size is much larger, leading to high WA.
- Synchronous commit patterns: Applications that force a physical write to disk (`fsync`) after every single transaction without using group commit optimization effectively serialize I/O and magnify write overhead.
Furthermore, many database applications are simply not designed to take advantage of NVMe’s parallelism. They fail to generate enough concurrent requests to keep the drive busy. As research from the VLDB conference demonstrates, around 1000 concurrent I/O requests are needed just to achieve decent performance, with up to 3000 required to fully saturate a modern NVMe array. An application with a low queue depth will leave the drive idle most of the time, failing to unlock its performance potential while still being susceptible to write amplification from inefficient operations.
RAID for NVMe: Balancing Protection Without Killing Speed
RAID has been the cornerstone of data protection for decades, but traditional RAID controllers are a significant architectural bottleneck for NVMe. Hardware RAID cards, designed for SAS and SATA, simply cannot keep up with the millions of IOPS and gigabytes per second of throughput from a modern NVMe array. They become the new single point of failure and performance limitation. This has pushed many towards software RAID solutions (like ZFS or mdadm), but this approach is not without its own severe trade-offs.

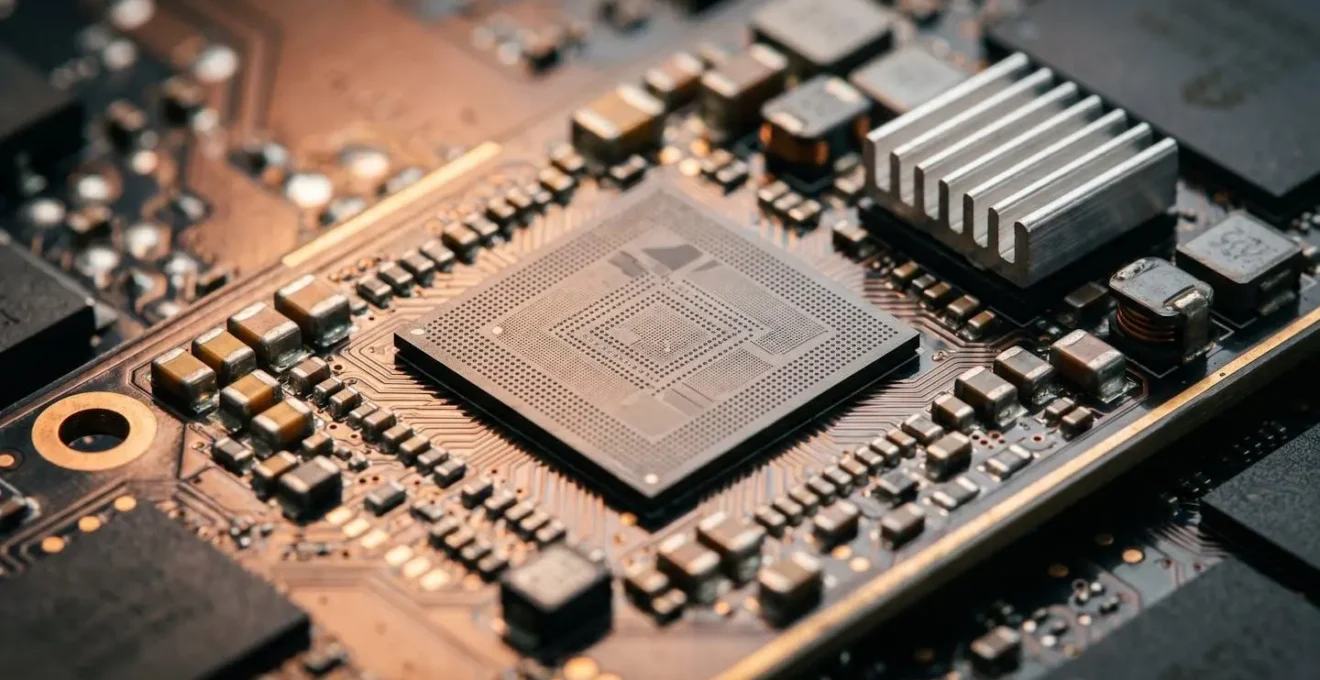

Software RAID consumes significant CPU cycles to perform parity calculations. On a system already busy running a database, this CPU overhead can steal resources from the database engine itself, effectively negating some of the performance gains from the NVMe storage. It creates a new architectural bottleneck at the CPU level, where storage performance is now limited by compute capacity.
Despite these challenges, abandoning data protection is not an option. The key is to choose a modern RAID implementation designed for the NVMe era. This often means leveraging RAID capabilities built into the storage system’s software or using RAID-on-Chip (RoC) controllers specifically designed for PCIe 4.0/5.0 speeds. When configured correctly, the performance gains are still massive. According to ACM Systems and Storage Conference research, NVMe-backed database applications can deliver up to 8x superior client-side performance over enterprise SATA SSDs, even within a protected RAID configuration.
The modern approach to RAID for NVMe often involves RAID 10 for its excellent write performance and simple calculation, or more advanced erasure coding schemes (like RAID 5/6) that are offloaded to dedicated processing units to minimize host CPU impact. The days of the simple, universal RAID 5 setup are over; protection for NVMe requires a more nuanced, workload-aware strategy that prioritizes minimizing CPU overhead.
Why Snapshots Are Not a Replacement for Off-Site Backups?
In the high-speed world of NVMe, storage array snapshots are an incredibly powerful tool. They provide near-instantaneous, point-in-time copies of data, enabling rapid recovery from logical errors like accidental data deletion or application bugs. Their low performance impact makes them ideal for frequent, operational recovery points. However, it is a catastrophic mistake to consider snapshots a replacement for a true backup strategy. The reason is simple and brutal: the blast radius.
A snapshot is not a separate copy of the data; it’s a set of pointers that lives on the same physical storage array as the primary data. This is their fatal flaw as a data protection mechanism. As the Database Migration Expert Community states unequivocally:
A snapshot resides on the same physical array. A catastrophic array failure or successful ransomware attack will destroy both the primary data and all its snapshots.
– Database Migration Expert Community, Zero-Downtime Database Migration Best Practices
A fire, flood, array-level firmware bug, or a ransomware attack that encrypts the entire array will wipe out your production data and every snapshot along with it. A true backup must be physically and logically separate from the primary system. This principle is codified in the long-standing 3-2-1 backup rule, which is more relevant than ever in the NVMe era:
- Maintain at least 3 copies of your critical database data at all times (1 primary + 2 backups).
- Store these copies on 2 different media types (e.g., your primary NVMe array and a secondary tier like SATA SSDs or cost-effective object storage).
- Keep 1 copy geographically off-site in a different datacenter or cloud region to survive a site-wide disaster.
This strategy ensures that you have a copy of your data that is immune to the “blast radius” of a failure on your primary site. For ultimate protection against ransomware, one of these copies should be immutable or air-gapped, meaning it cannot be altered or deleted for a set period, even by an attacker with full administrative credentials.
Hot vs Cold Storage: Which Tier Matches Your Retrieval Needs?
Not all data is created equal. In a large database, a small fraction of the data is typically “hot” – actively accessed and modified – while the vast majority is “warm” or “cold,” accessed infrequently. Placing all this data on expensive, high-performance NVMe storage is a massive waste of resources. A modern, cost-efficient architecture employs storage tiering, matching the performance and cost of the storage media to the data’s access patterns and retrieval needs.
With the advent of NVMe-oF, it’s now possible to build a multi-tiered architecture that delivers sub-millisecond latency for hot data without breaking the bank. The key is to correctly classify your database components and place them on the appropriate tier. Transaction logs, which require the absolute lowest latency for synchronous writes, belong on the fastest tier available, while historical archives can reside on much cheaper, higher-latency storage.
| Storage Tier | Technology | Latency Profile | Database Components | Use Cases |
|---|---|---|---|---|
| Scorching / Tier 0 | Local NVMe PCIe | 20-70 µs (random read) | Transaction logs (WAL), Active indexes, Hot table partitions | Real-time trading, E-commerce checkout, High-frequency OLTP |
| Hot / Tier 1 | NVMe-oF (TCP/RoCE) | 200-500 µs | Primary database files, Frequently accessed data partitions | Interactive applications, User-facing databases |
| Warm / Tier 2 | SATA SSD | 100-200 µs (avg), slower tail | Less-frequently accessed partitions, Secondary indexes | Historical queries, Reporting databases |
| Cold / Tier 3 | HDD / Object Storage | 5-10 ms | Archives, Compliance data, Backup repositories | Long-term retention, Regulatory compliance |
This intelligent placement strategy optimizes both performance and cost. The most latency-sensitive operations are serviced by Tier 0 local NVMe, while the bulk of the data resides on a cost-effective but still highly performant Tier 1 NVMe-oF array. Older, less critical data can be automatically or manually migrated to slower, cheaper SATA SSD or even object storage tiers for long-term retention. This ensures you’re not paying a premium to store cold data on your most valuable storage real estate.
Key Takeaways
- NVMe’s superiority comes from its massively parallel architecture, not just the PCIe interface.
- User experience is defined by low and predictable latency (P99), making it a more critical metric than raw IOPS for transactional workloads.
- Migrating to NVMe exposes new bottlenecks: write amplification that kills drive endurance and software RAID that consumes critical CPU cycles.
IOPS vs Latency: Which Metric Matters More for User Experience?
For decades, the storage industry has been obsessed with IOPS (Input/Output Operations Per Second). It was a simple, easy-to-market number that seemed to represent performance. This is a dangerous legacy of the spinning-disk era. In the age of NVMe, clinging to IOPS as the primary performance metric is not only misleading, it leads to poor architectural decisions and a degraded user experience. The metric that truly matters is latency.
Imagine a web application where a user clicks a button. This triggers a single database query. That query doesn’t care if the storage array can perform a million IOPS; it only cares how long its single I/O request takes to complete. This is latency. As one performance analyst bluntly puts it:
Real workloads are latency-bound. A single PHP request waiting on MySQL does not meaningfully benefit from 100,000 IOPS if each operation still takes milliseconds to complete.
– Linux System Performance Analyst, VPS IOPS vs. Latency: Why NVMe Benchmarks Lie
Furthermore, average latency metrics can be just as misleading as IOPS. A system might have a great average latency but suffer from terrible “tail latency” – the small percentage of operations that take exceptionally long. These outliers are what users perceive as application “stalls” or “hiccups.” Comprehensive VPS performance benchmarking reveals a 41% improvement in read latency when measuring the 99.9th percentile (P99.9) on high-performance NVMe, highlighting issues completely hidden by average metrics.
Different database workloads have different priorities. An analytics query scanning billions of rows (OLAP) benefits from high IOPS and throughput, while a user-facing transaction (OLTP) is entirely bound by latency. Focusing on the right metric is essential for system design.
| Workload Type | Primary Metric | Secondary Metric | Queue Depth Pattern | Why It Matters |
|---|---|---|---|---|
| OLTP (Online Transaction Processing) | Low Latency (P99/P999) | Moderate IOPS | QD1-QD8 (low) | Single-user transactions demand instant response; tail latency defines user experience |
| OLAP (Analytics/Data Warehouse) | High IOPS + Throughput | Average Latency | QD32+ (high) | Parallel scans benefit from concurrent operations; total job time more critical than individual query |
| Interactive Web Apps | P99 Latency | Consistent IOPS | QD4-QD16 (variable) | User-facing requests cannot tolerate outliers; predictability over raw speed |
| Batch Processing | Throughput (MB/s) | Sustained IOPS | QD64+ (very high) | Sequential large-block I/O; completion time of entire workload is the goal |
Ultimately, transitioning your databases to an NVMe-based architecture is about more than a hardware refresh. It is a fundamental shift in how you design, manage, and measure storage performance. Stop chasing IOPS and start engineering for low, predictable latency to deliver the performance your users truly feel.
